Clean sapphire Chrystler Pacifica wheelchair van

BraunAbility® Chrysler Pacifica Power Fold-Out XT

At MobilityWorks you will always find the newest innovations in adaptive equipment. The BraunAbility Chrysler Pacifica Power Foldout XT has a 57 ” doorway height and 60″ interior height to accommodate taller wheelchair users.

BraunAbility® Fold-Out XT Chrysler Pacifica Wheelchair Vans For Sale

Power Fold-Out Ramp

Manual ramp folding back into wheelchair van
This power fold-out ramp deploys easily onto curbs with a 1,000 lb ramp capacity.

Removable Front Row Seats

The interior of a wheelchair van without passenger and back seats
The Chrysler Pacifica Power Fold-Out conversion has easy to remove front driver and passenger seats.

Foldaway Footrest

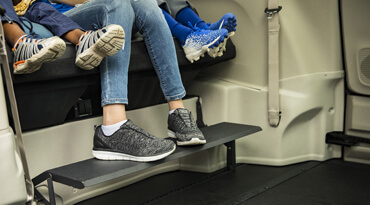

The feet and legs of a women and two kids on a foot rest in a wheelchair van
Full-width, third-row foot rest for up to 3 passengers, the most in the industry.

BraunAbility® Power Fold-Out XT Dimensions

Sideview wheelchair van schematic

Aerial view wheelchair van schematic



Vehicle Information
Name of Conversion
BraunAbility Power Fold-Out XT
Make and Model
Chrysler Pacifica
Door Opening
AUsable Height:
57"
BUsable Width
32.375"
Ramp Information
Fold-Out / In-Floor
Fold-Out
Power / Manual
Power
Weight Capacity
1000
Full / Partial Cut
Full Cut
CLength
52"
DWidth
30.125"
EAngle
Kneeling System
Yes
Interior Information
FHeight at Center of Van
60.25"
GHeight at Front Row Position
61"
HFloor Length (Behind Seats)
66.25"
IOverall Floor Length (Flat Area)
98"
JLowered Floor Width
70.25"
Removable Front Row Seats
Both
