BraunAbility Power InFloor Chrysler Van

BraunAbility® Chrysler Pacifica Power In-Floor

At MobilityWorks you will always find the newest innovations in adaptive equipment. The BraunAbility Chrysler Pacifica Power In-Floor features patent-pending  technology, creating the widest door opening and side-entry ramp in its class. These engineering breakthroughs ensure superior maneuverability and improved ease of entry and exit for wheelchair users.

BraunAbility® Power InFloor Chrysler Pacifica Wheelchair Vans For Sale

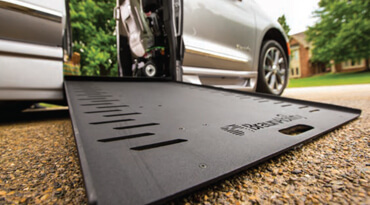

Power In-Floor Ramp

BraunAbility manual ramp on pavement
This power in-floor ramp is extra-wide with a 1,000 lb capacity and stows out of sight.

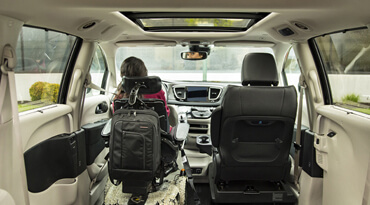

Removable Front Row Seats

Women sitting on a driver side seat in a wheelchair van with no back seats
The Chrysler Pacifica Power In-Floor conversion has easy to remove front driver and passenger seats.

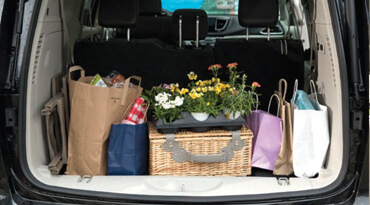

Rear Cargo Space

Wheelchair cargo space with backpack, cooler, and brown paper
This conversion has ample cargo space behind the rear bench seat.

BraunAbility® Power In-Floor Dimensions

Sideview wheelchair van schematic

Aerial view wheelchair van schematic



Vehicle Information
Name of Conversion
BraunAbility Power Infloor
Make and Model
Chrysler Pacifica
Door Opening
AUsable Height:
55"
BUsable Width
34.5"
Ramp Information
Fold-Out / In-Floor
In-Floor
Power / Manual
Power
Weight Capacity
1000
Full / Partial Cut
Full Cut
CLength
51.25"
DWidth
32.25"
EAngle
9.9°
Kneeling System
Yes
Interior Information
FHeight at Center of Van
58"
GHeight at Front Row Position
58"
HFloor Length (Behind Seats)
71"
IOverall Floor Length (Flat Area)
98.5"
JLowered Floor Width
59.75"
Removable Front Row Seats
Both
