Vantage Mobility Dodge Northstar®  Power In-Floor

The Vantage Mobility Dodge Grand Caravan Northstar provides ease of use and flexibility at a budget-friendly price. This wheelchair conversion van offers all of the in-floor ramp benefits, such as an obstruction-free doorway and uncluttered interior, in an affordable mobility vehicle.

Vantage Mobility Northstar®
Dodge Wheelchair Vans for Sale



High Capacity Ramp

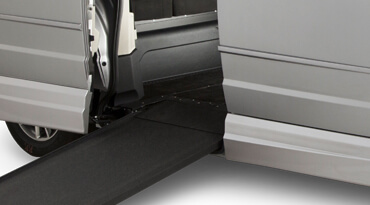

Close up of slightly inclined manual ramp on a wheelchair van
Ramp has a wide usable area and an 800 lb weight capacity to accommodate large wheelchairs.


Removable Seats

Interior of a wheelchair van without seats
Front seats can be removed to create multiple seating options for greater independence and flexibility.

Obstruction Free Doorway

Little schoolgirl stepping out of a wheelchair van
Safe entry and exit without deploying the ramp for ambulatory passengers.

Vantage Mobility Northstar® Power In-Floor Dimensions

Sideview wheelchair van schematic

Aerial view wheelchair van schematic



Vehicle Information
Name of Conversion
Vantage Mobility Northstar® Power Infloor
Make and Model
Dodge Grand Caravan
Door Opening
AUsable Height:
54.8"
BUsable Width
30.1"
Ramp Information
Fold-Out / In-Floor
In-Floor
Power / Manual
Power
Weight Capacity
1000
Full / Partial Cut
Full Cut
CLength
58.8"
DWidth
28.8"
EAngle
9.2°
Kneeling System
Yes
Interior Information
FHeight at Center of Van
58.1"
GHeight at Front Row Position
57.8"
HFloor Length (Behind Seats)
61.3"
IOverall Floor Length (Flat Area)
86"
JLowered Floor Width
60"
Removable Front Row Seats
Both
