Gray Dodge wheelchair van with slightly elevated ramp and side door open

BraunAbility® Dodge Power In-Floor

The BraunAbility Dodge Power Infloor side-entry conversion offers  a 32″ wide ramp that extends and retracts easily and will accommodate the larger wheelchair and scooter sizes. The ramp has an angle of 9.5° for easy entering and exiting. Removable front seats allow for more flexibility.

BraunAbility Power InFloor Dodge Wheelchair Vans for Sale



Power In-Floor Ramp

Manual ramp on a red wheelchair van with a white stripe
The 32″ wide lightweight aluminum ramp extends and retracts smoothly, has a nonskid finish and slotted surface to help prevent tracking debris.

Removable Seats

Carseat aboarding the wheelchair van through the manual ramp
Simply unlock the seat base and roll the entire seat out for front row seating flexibility. Reinstall  easily when needed.

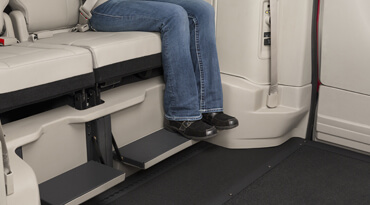

Fold-Down Footrest

Feet on a foot rest in a wheelchair van
The fold-down footrest provides 3rd row passenger comfort.

BraunAbility® Power In-Floor

Sideview wheelchair van schematic

Aerial view wheelchair van schematic



Vehicle Information
Name of Conversion
Power In-Floor
Make and Model
Dodge Grand Caravan
Door Opening
AUsable Height:
55"
BUsable Width
32.5"
Ramp Information
Fold-Out / In-Floor
In-Floor
Power / Manual
Power
Weight Capacity
800
Full / Partial Cut
Full Cut
CLength
52"
DWidth
32"
EAngle
9.5°
Kneeling System
Yes
Interior Information
FHeight at Center of Van
59"
GHeight at Front Row Position
57.75"
HFloor Length (Behind Seats)
57"
IOverall Floor Length (Flat Area)
87.5"
JLowered Floor Width
62"
Removable Front Row Seats
Both
